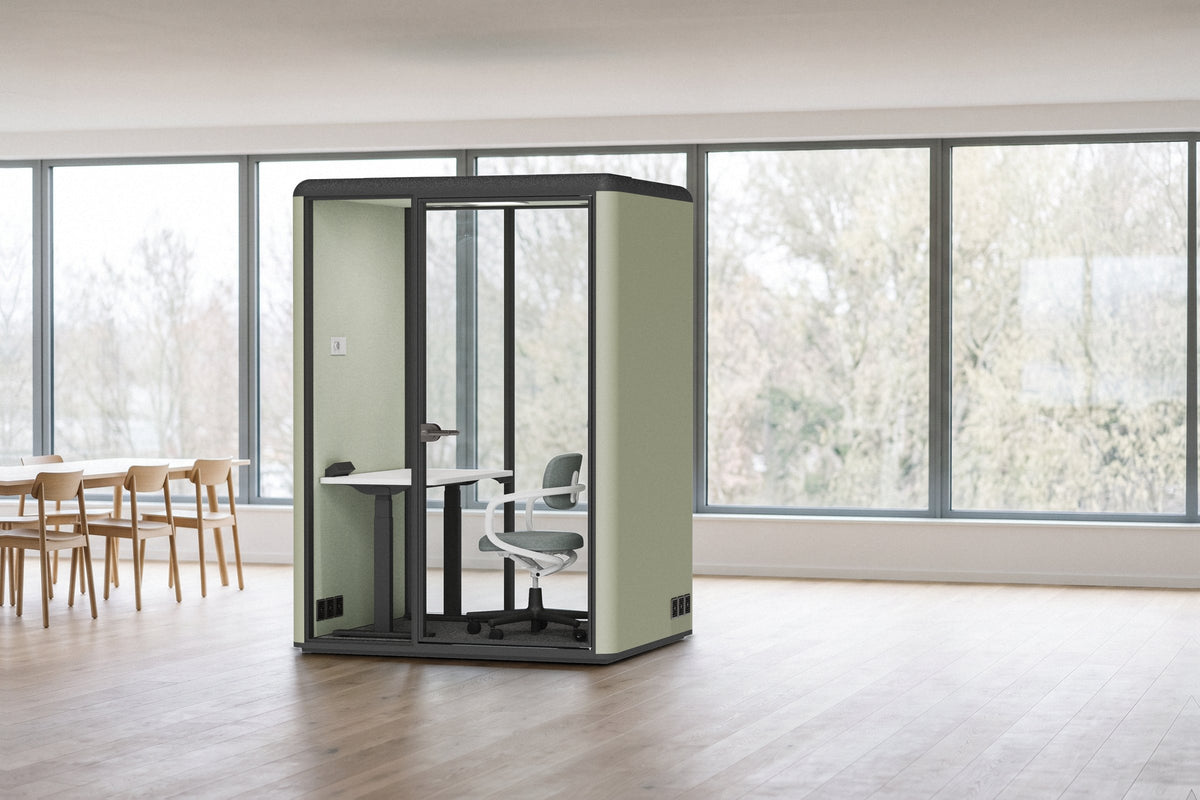

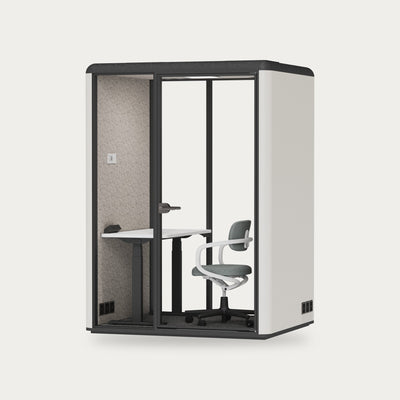

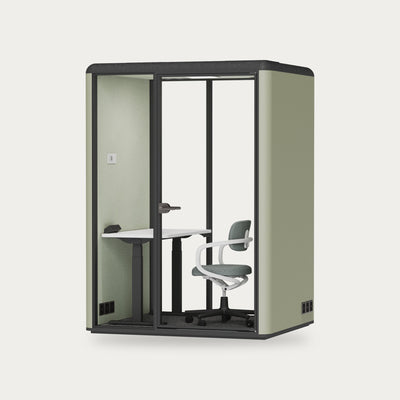

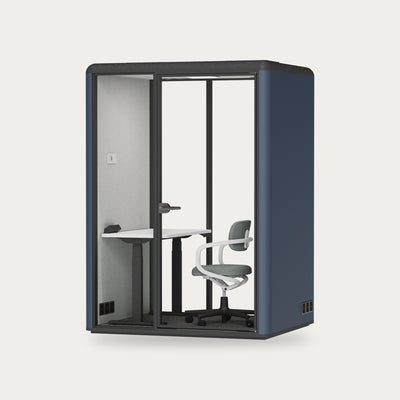

With height-adjustable desk
Namještaj
- Height-adjustable deskW 1160 × D 600 × H 740–1150 mm
- Top: white or natural plywood
Struja i priključci
- Clamp-on desk power module: 2 AC outlets, 1 × USB, 1 × USB-C
Heka Interior · Akustične kabine

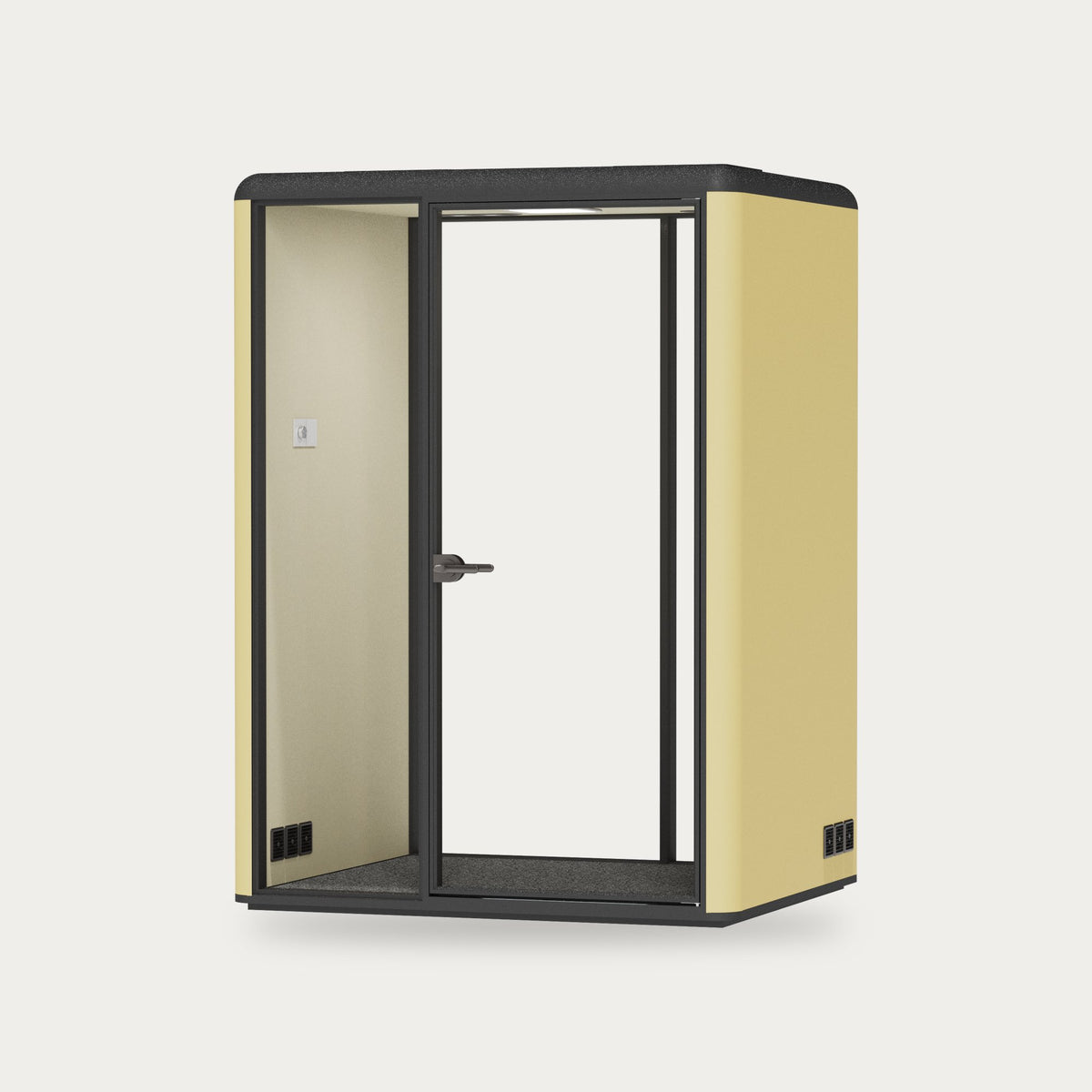

CorePod Duo
Kabina za rad jedne osobe ili razgovor dviju osoba.
Ključni podaci
- External dimensions (W × D × H)
- 1635 × 1360 × 2280 mm
- Capacity
- 1–2 people
- Sound insulation
- DS,A 30.3 dBISO 23351-1:2020, class A
- Ventilation
- 282 m³/h4.7 m³/min
Cijena na upit
- Isporuka, montaža i servis: tim Heka
- Savjetovanje pri smještaju u prostor
- Kabine po mjeri
Izvedbe

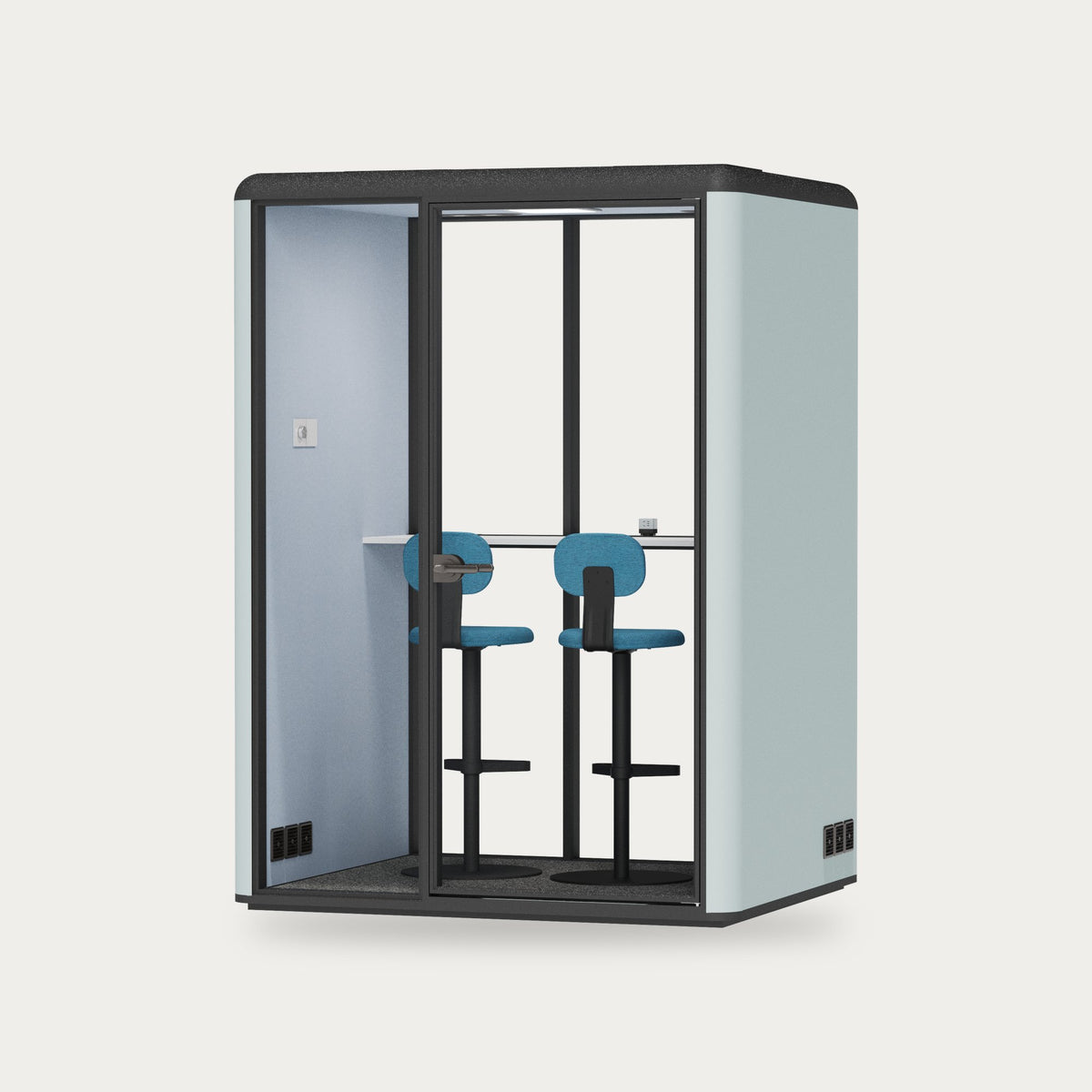

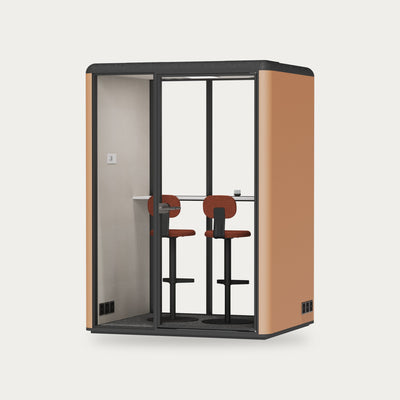

With bar table
Namještaj
- Bar table with two cup holdersW 1460 × D 475 × H 1050 mm
- Top: white or natural plywood
Struja i priključci
- 2 power tracks, each with 1 AC outlet
- Wireless charging
- USB module (optional)

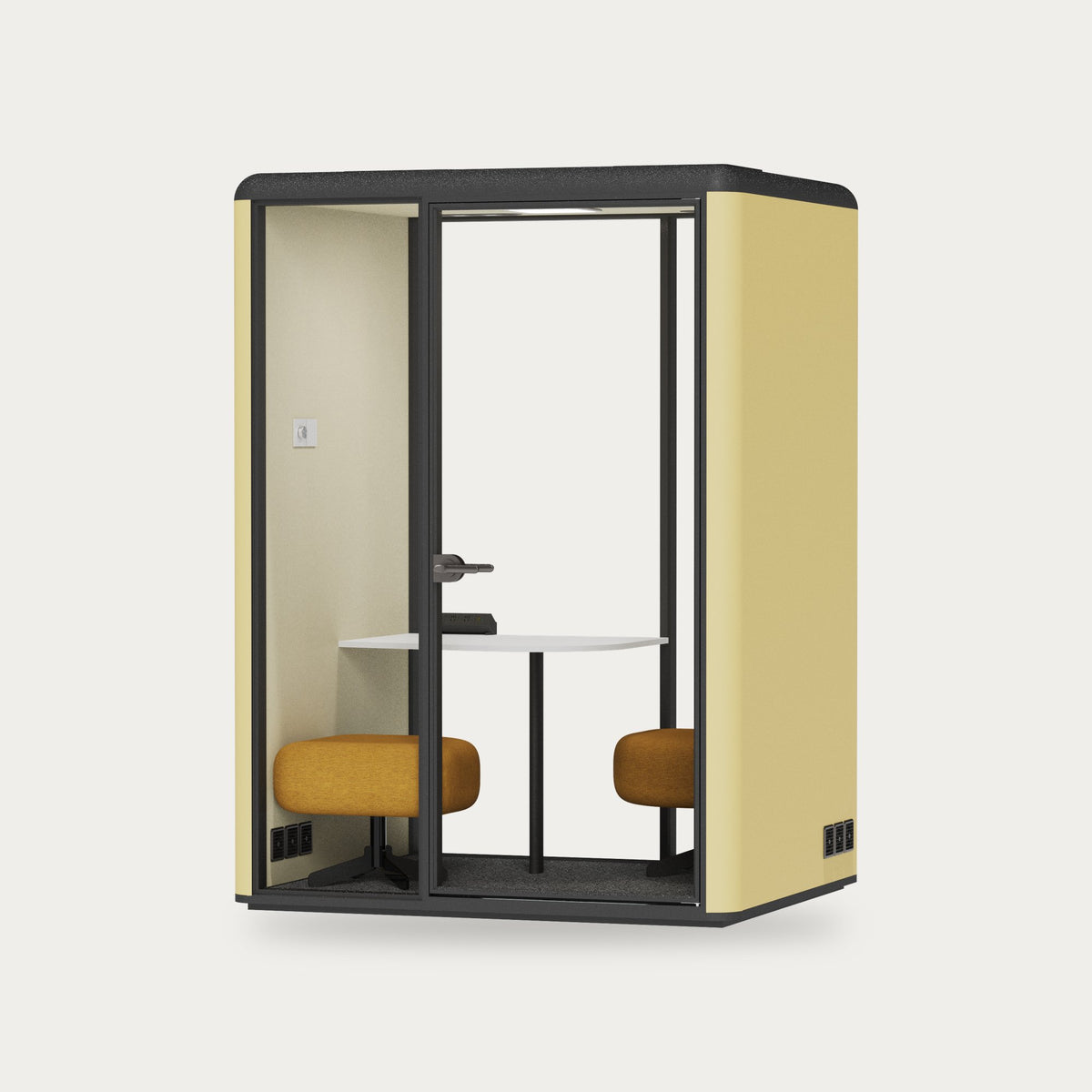

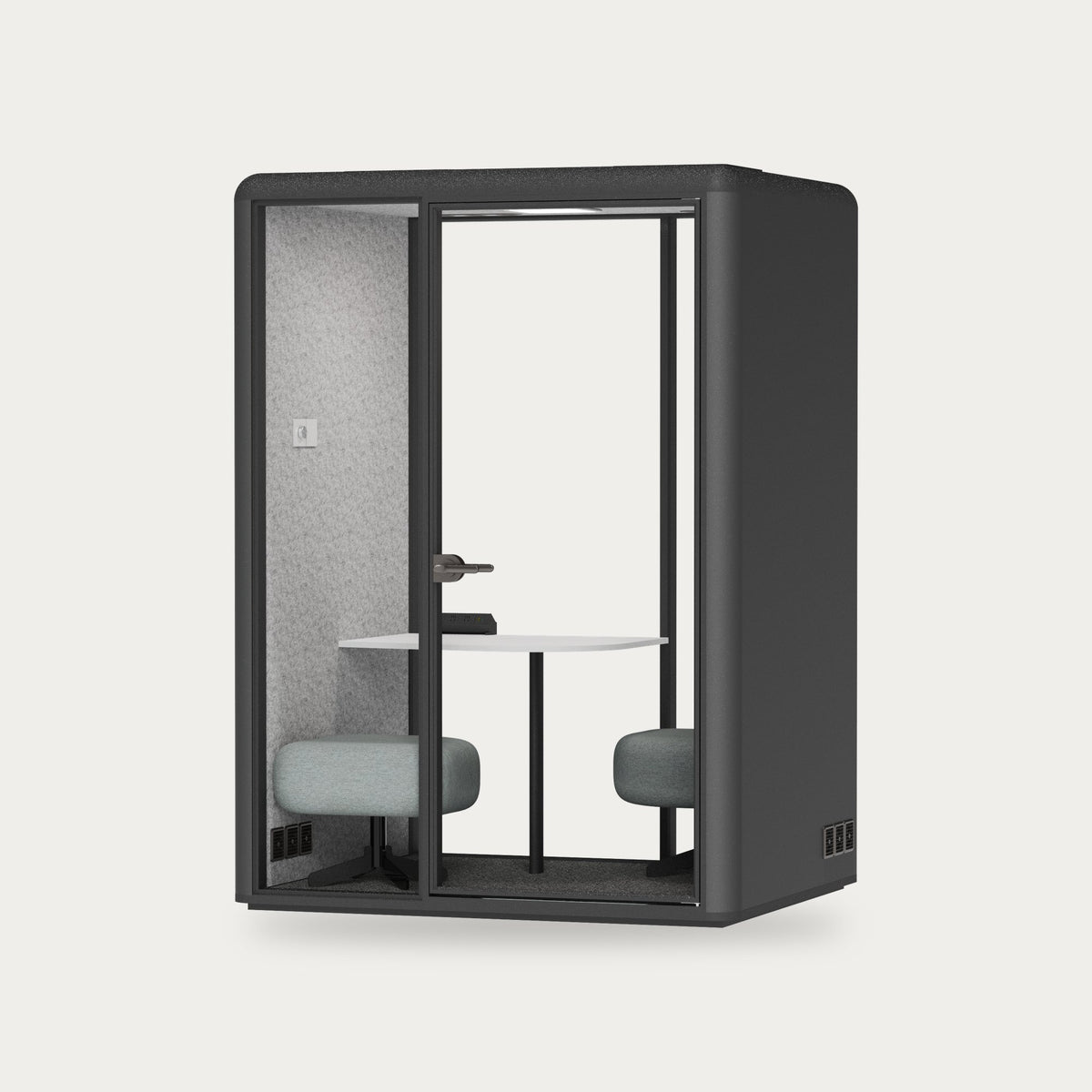

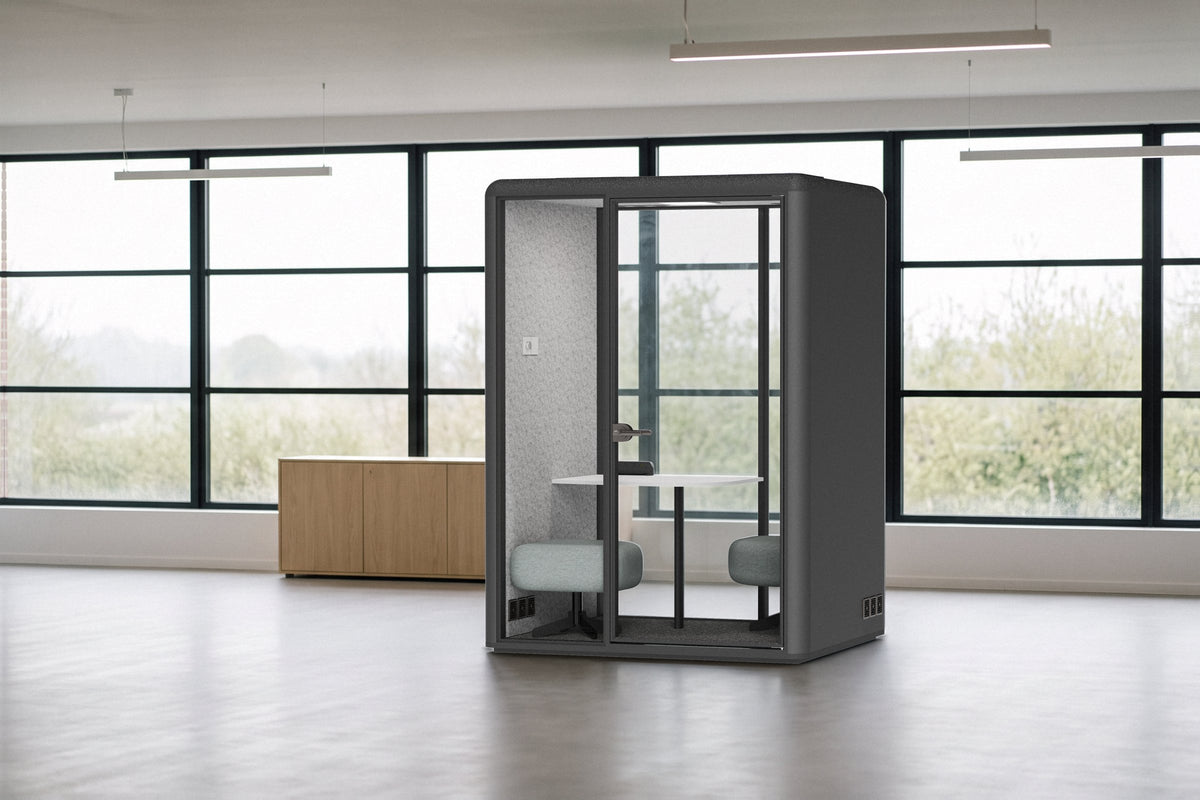

With meeting table
Namještaj
- Meeting tableW 900 × D 700 × H 740 mm
- Upholstered seatW 600 × D 600 × H 440 mm
- Top: white or natural plywood
Struja i priključci
- Clamp-on desk power module: 3 AC outlets, 1 × USB, 1 × USB-C
Tehnički podaci
Dimensions and weight
| External dimensions (W × D × H) | 1635 × 1360 × 2280 mm |
|---|---|
| Internal dimensions (W × D × H) | 1465 × 1190 × 2130 mm |
| Weight | 450 kg |
| Capacity | 1–2 people |
Door
| Type | Hinged glass door opening outwards, with door closer |
|---|---|
| Opening direction | Right-hand door |

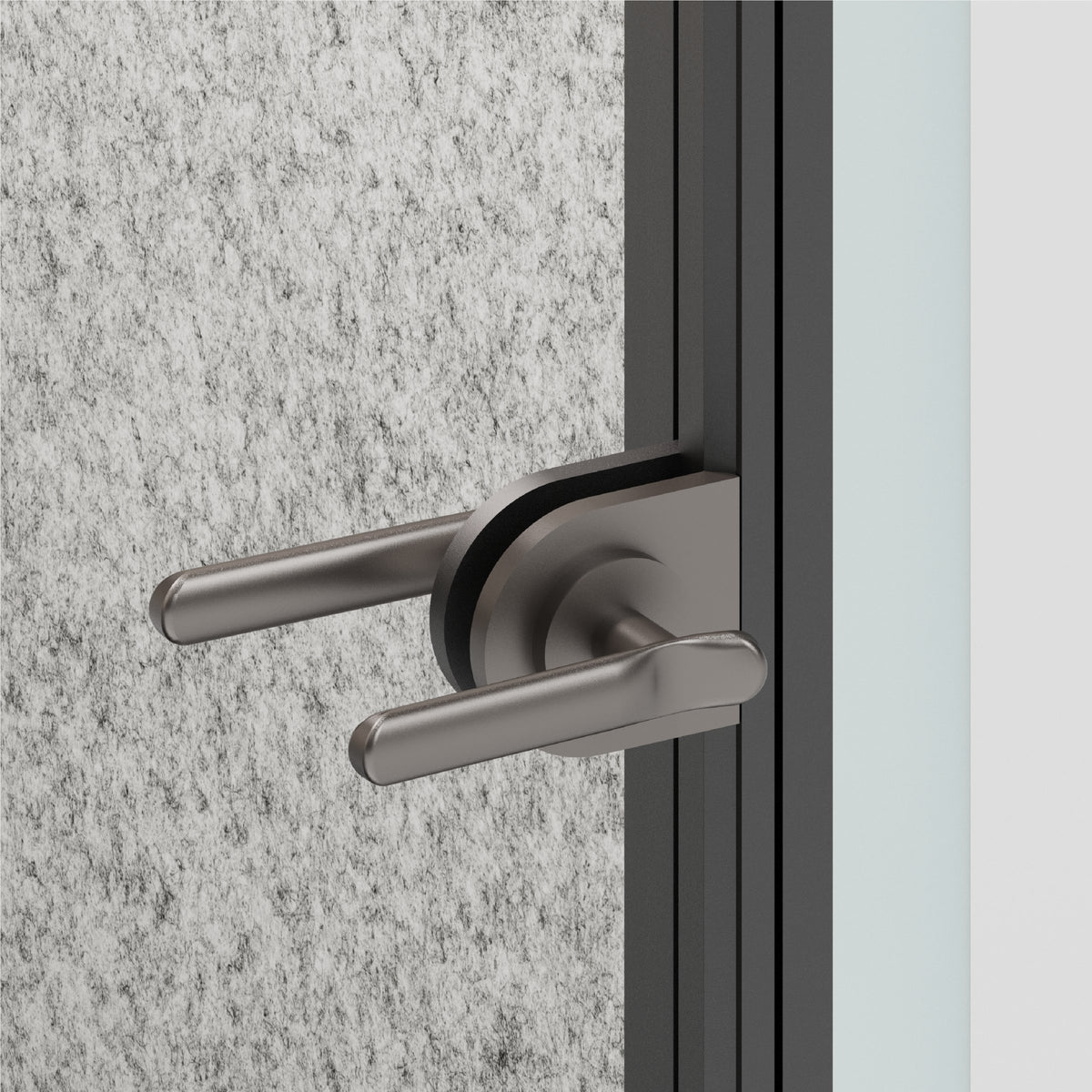

| Closing | Silent magnetic latch, ergonomic handle |
Acoustics
| Speech level reduction | DS,A 30.3 dB, ISO 23351-1:2020, class A |
|---|---|
| Sealing | D-profile seals made of natural rubber; silencer in the roof reduces fan and outside noise. |

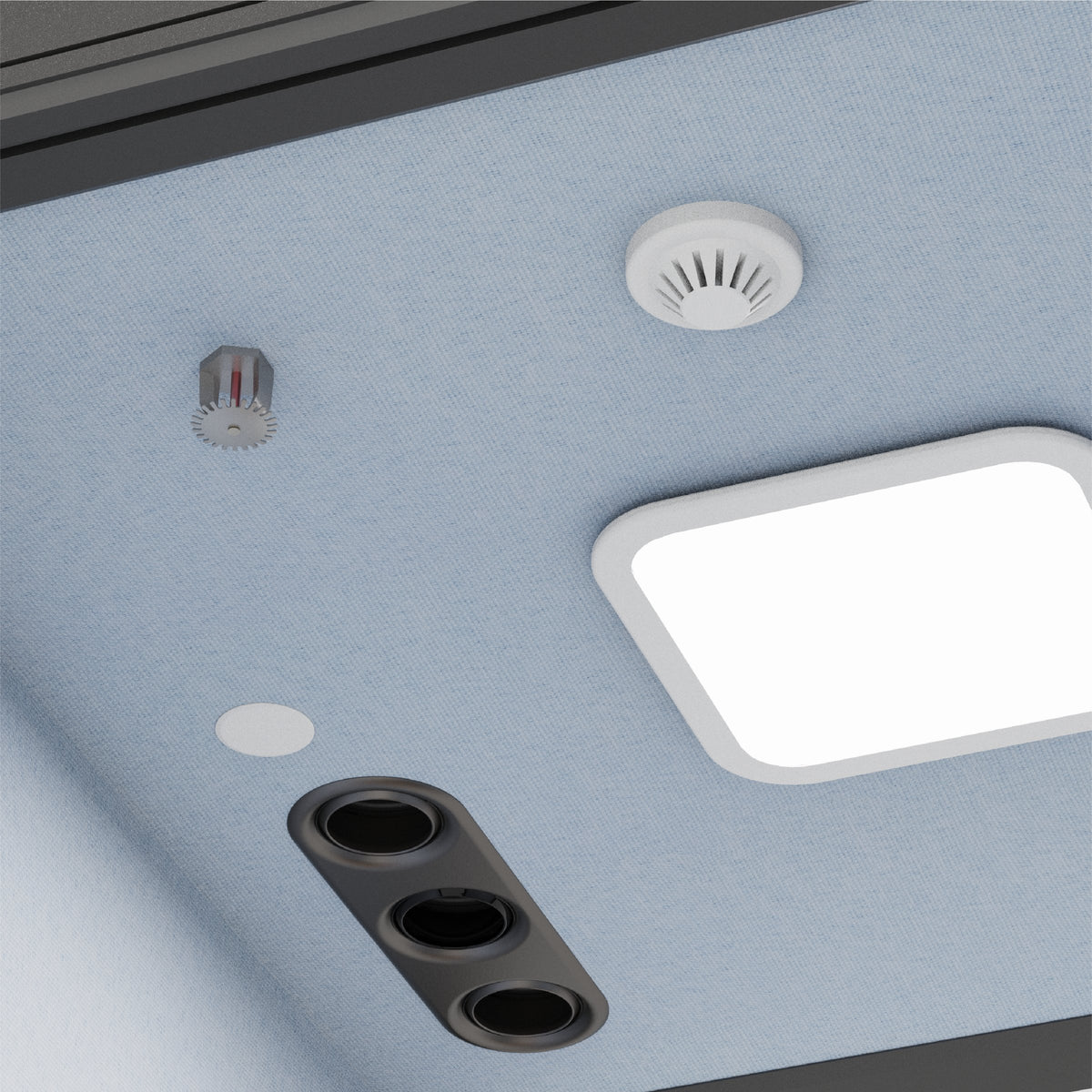

Ventilation and lighting
| Air flow | 282 m³/h (4.7 m³/min) |
|---|---|
| Fans | 2 supply and 6 exhaust fans |
| Control | Adjustable ventilation with supply and exhaust fans; adjustable airflow direction. |
| Lighting | Ceiling LED light 4000 K, stepless dimming, motion sensor (0–20 W) |
Electrics
| Connection | Mains connection with a European plug |
|---|---|
| Pod power consumption | 31 W |
| Load for connected devices | Total load of connected devices up to 1000 W |
| USB | 5 V / 3.1 A |
| Network | LAN cable 3 m (optional) |
Materials
| Frame | Aluminium alloy 6063 |
|---|---|
| Glass | Laminated safety glass 4 + 0.76 PVB + 4 mm |

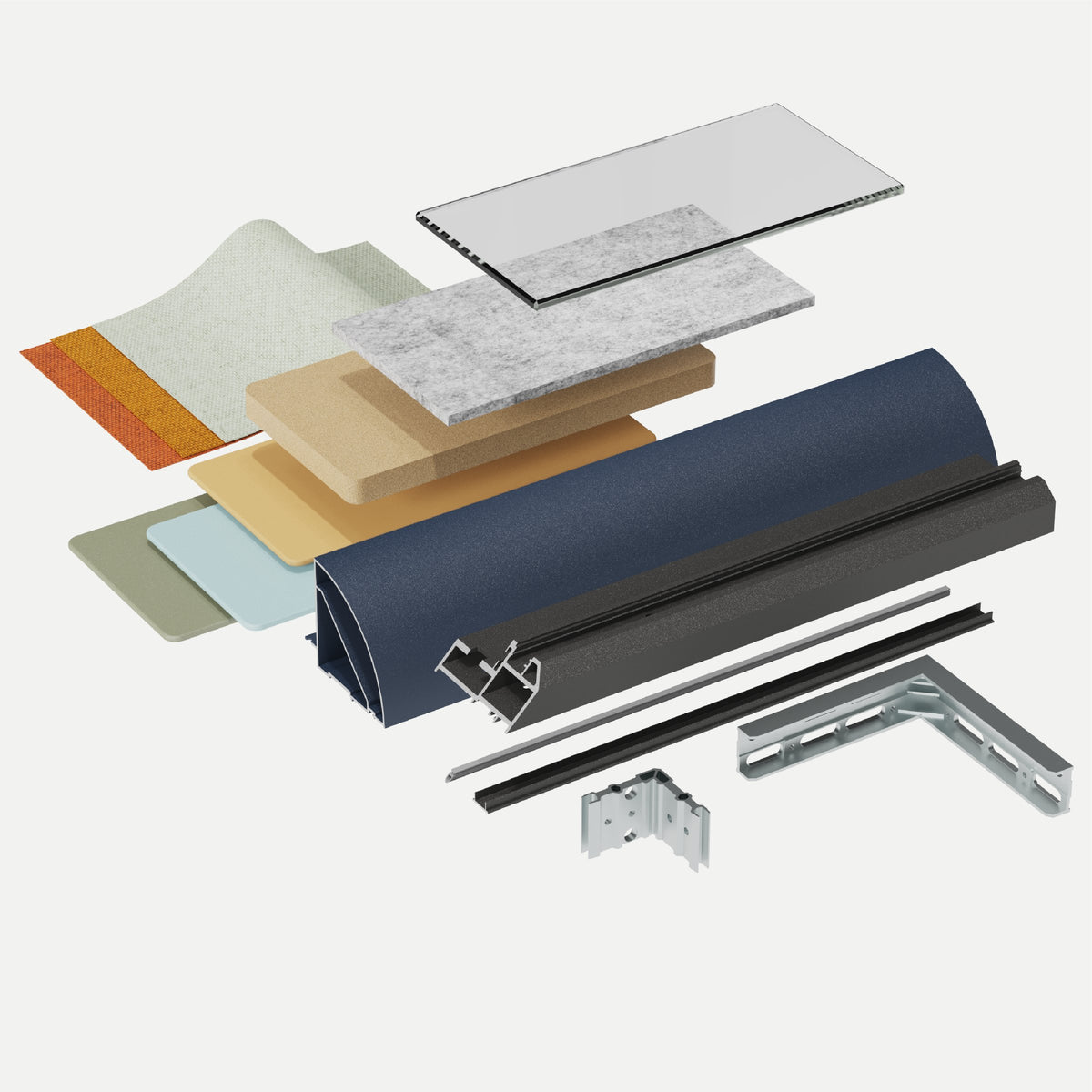

| Walls | Steel cladding 1.0 mm or fabric; acoustic package: double-layer sound block 2300 g, polyester panel 3.5 mm (1800 g), felt 350 g, polyester panel 9 mm (1800 g), fabric 2 mm (400 g). |
| Roof | Steel 0.8 mm or fabric; acoustic package: double-layer sound block 2000 g, polyester panel 3.5 mm (1800 g), felt 350 g, polyester panel 9 mm (1800 g), fabric 2 mm (400 g). |
| Floor | E0 plywood 25 + 9 mm with black ABS edging, steel frame, adjustable heavy-duty feet 25 mm, nylon-yarn carpet on TPO backing. |
| Finish | Electrostatic powder coating |
| Interior | Interior lining in felt or fabric |
| Recycling | More than 96 % of the pod's mass consists of recyclable materials. |
Installation and logistics
| Installation | Modular construction from six main modules. Delivery, installation and service by the Heka team. The pod can be dismantled and relocated. |
|---|---|
| Placement | Freestanding pod on adjustable feet, no building work. |
| Pallet dimensions | 2240 × 1410 × 840 mm, 2.69 m³ (incl. pallet) |
| Warranty | By agreement; the terms are stated in the quote. |
Boje i materijali
On-screen colours are approximate; samples are available on request.
Exterior steel cladding, powder-coated 9
-
Ice Blue
-
Chalk White
-
Graphite
-
Caramel
-
Sage
-
Straw Yellow
-
Midnight Blue
-
Powder Pink
-
Khaki
Fabric exterior cladding: on request
Roof, base and door frame 1
-
Dark Grey
Roof in another colour on request.
Interior felt lining 2
-
Grey Melange
-
Sand
Interior fabric lining 9
-
Light Grey
-
Stone Grey
-
Linen
-
Moss Green
-
Dove Blue
-
Lavender Grey
-
Dusty Rose
-
Ochre
-
Brick
Upholstery fabric for seating 10
-
Steel Grey
-
Greige
-
Mustard
-
Chestnut
-
Rust
-
Rosewood
-
Plum
-
Lake Blue
-
Navy
-
Spruce Green
Carpet 2
-
Anthracite
-
Stone Beige
Desk top 2
-
White (melamine-faced chipboard)
-
Natural plywood
Crtež s mjerama
Kabine po mjeri
We adapt the pod to the space, the corporate identity and the way you work.
- Exterior and interior colours from the palette; fabric exterior cladding on request.
- Glass with printed pattern or switchable privacy glass.
- Larger meeting space built from modules: CoreRoom.
- Advice on positioning in the space.
- Delivery, installation and service: the Heka team.
Dodatna oprema
Česta pitanja
How is the pod installed, and can it be relocated?
Modular construction from six main modules. Delivery, installation and service by the Heka team. The pod can be dismantled and relocated. Freestanding pod on adjustable feet, no building work.
What does the pod need for the power connection?
The pod connects to the mains with a European plug. The pod uses 31 W; connected devices may draw up to 1000 W in total.
How does the ventilation work?
Supply and exhaust fans move 282 m³/h (4.7 m³/min) of air. Air flow and direction are adjustable; a silencer in the roof reduces fan noise.
What is the sound insulation?
Speech level reduction DS,A 30.3 dB according to ISO 23351-1:2020, class A. D-profile seals made of natural rubber; silencer in the roof reduces fan and outside noise.
Who delivers and installs the pod?
Delivery, installation and service: the Heka team. Advice on positioning in the space.
What warranty applies?
By agreement; the terms are stated in the quote.
