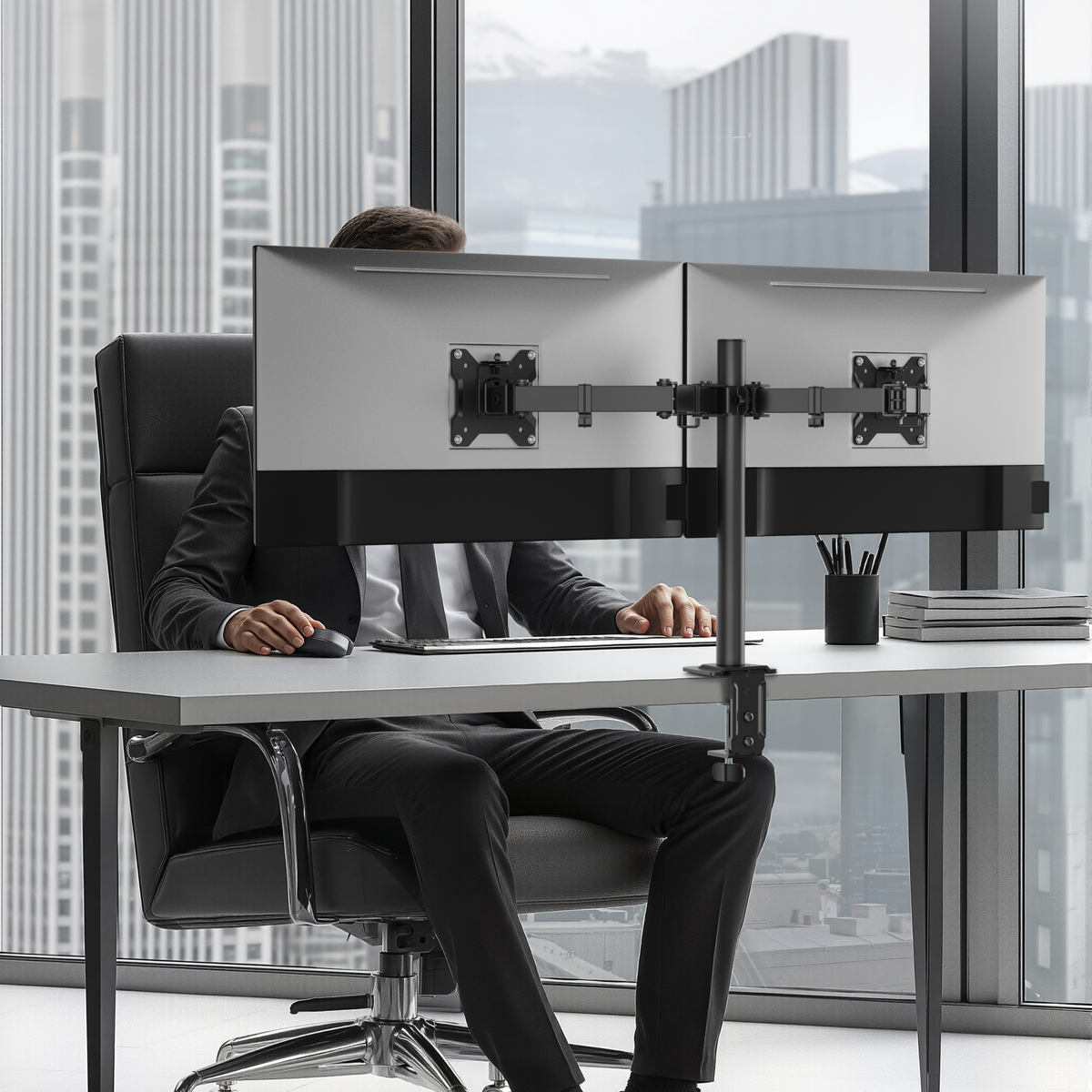

Heka CoreView Duo – dual monitor arm
Heka CoreView Duo is an arm for two screens. It lifts the monitors off the desktop and frees the space underneath — for workstations with two screens.
What you get
- A clear desktop, both screens on the arm
- Each screen 17–32 inches and up to 10 kg
- Set tilt, swivel and rotation without tools
- Clamp and grommet fixing are both included
Technical data
| Dimensions | 866 × 106 × 548 mm |
|---|---|
| Screens | 2 × 17–32 inches, up to 10 kg per screen |
| VESA | 75 × 75 and 100 × 100 mm, removable plate |
| Tilt and swivel | ±45° and ±90° |
| Screen rotation | ±180° |
| Column | 408 mm, Ø 35 mm |
| Arm reach | 376 mm (segments 174 and 164 mm) |
| Clamp | desktop 10–85 mm |
| Grommet | desktop 10–45 mm |
| Colour | matt black |
| Net weight | 3.0 kg |
Mounting
- Screw the VESA plate onto the back of the screen.
- Fix the arm with the clamp on the desk edge or through a grommet.
- Hook the screen onto the arm and set the height.
Price on request — we prepare an offer within 1 to 2 working days.
View in your space
Scan the code with your phone — the model opens in AR.
Request a quote
Send us your inquiry and we will come back with a tailored quote within 1-2 working days.
Technical data — CoreView Duo
Key features
- Arm for two screens from 17" to 32"
- Load capacity up to 10 kg per screen
- VESA 75 × 75 and 100 × 100 mm, removable plate
- Tilt ±45°, swivel ±90°, screen rotation ±180°
- Height adjustment along the column
- Mounting with a clamp or through a grommet — both included
- Cable routing along the arm
- Matt black, heka logo on the column
Dimensions and technical data
Dimensions: 866 × 106 × 548 mm
Column: 408 mm, Ø 35 mm
Arm reach: 376 mm (segments 174 and 164 mm)
Screens: 2 × 17–32", up to 10 kg per screen
VESA: 75 × 75 and 100 × 100 mm
Clamp: top 10–85 mm
Grommet: top 10–45 mm
Net weight: 3.0 kg
Materials and finishes
- Structure: steel, powder-coated
- Covers and cable guides: plastic
- Colour: matt black
- Clamp, grommet and fixings included
Mounting and adjustment
Fixing to the desk: a clamp on the edge of the desktop (10–85 mm) or a grommet fixing through an existing opening in the top (10–45 mm). Both kits are included.
Mounting the screen: screw the VESA plate onto the screen, then hook the screen onto the arm.
Adjustment:
- Tilt ±45°
- Swivel ±90°
- Screen rotation ±180° (landscape or portrait)
- Height along the column
Delivery and lead times
Price on request. We prepare an offer with the lead time within 1 to 2 working days.
Delivery: Slovenia and the EU; the lead time is confirmed in the offer.
Returns: 14-day right of withdrawal under the law.
For companies and architects
Quantities: for furnishing whole offices we prepare a project quotation.
Heka references: NLB (1,200 workstations), Triglav, Volvo
Drawings for your project: sent on request
Project contact: sales@heka-interior.com
PROJECT SUPPORT
For architects and planners
We furnish offices from the plan to the installation: desks, chairs, acoustics and accessories from one contractor.
Drawings for your project
We draw the arm into the floor plan together with the desk and check the thickness of the top. Drawings are sent on request.
Personal consultation
A project manager reviews your floor plan and proposes how the accessories are distributed across the workstations.
Visit the showroom
Showroom in Medvode, Žlebe 1 — see the products in person.
Project quotation
For a whole office we prepare one quotation covering all the equipment.
Documentation
Everything you need to decide, or to place the product in a project.
Drawings for your project
For your floor plan or project documentation. Sent on request.
Screens per arm
Kilograms per screen
Inches, largest screen
Days for a quotation
Frequently asked questions
How is the arm fixed to the desk?
In two ways, both included: with a clamp on the edge of the desktop (thickness 10–85 mm) or through an existing cable grommet in the top (10–45 mm).
How large can the screens be?
From 17 to 32 inches and up to 10 kilograms per screen. The screen needs VESA 75 × 75 or 100 × 100 mm mounting holes.
Can a screen be turned to portrait?
Yes. Screen rotation is ±180°, so the screen can be set landscape or portrait. The arm also tilts ±45° and swivels ±90°.
Does it work on a height-adjustable desk?
Yes, if the thickness of the top is within the range of the clamp (10–85 mm) or the grommet (10–45 mm). On a height-adjustable desk, leave enough slack in the cables for the full travel.
Why is the price on request?
We mostly supply the arms together with desks and the rest of the office equipment, so we prepare the price according to the quantity and the project. Send an inquiry through the form on this page or to sales@heka-interior.com; the offer follows within 1 to 2 working days.
What colour is the arm?
Matt black. The heka logo sits on the column.
