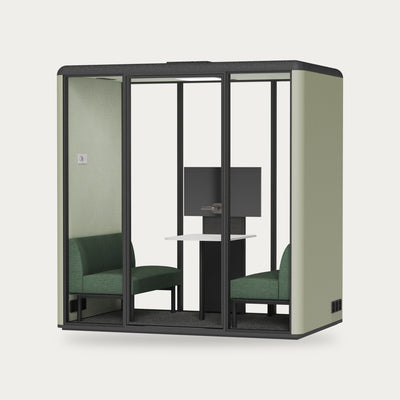

CorePod Meet acoustic pod, exterior Sage, furnished version

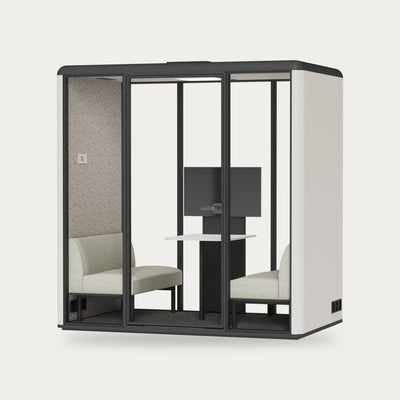

CorePod Meet acoustic pod, exterior Chalk White, with benches and screen mount

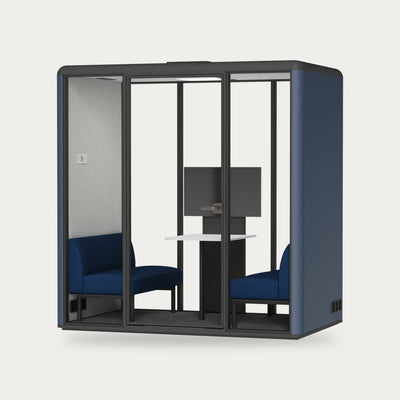

CorePod Meet acoustic pod, exterior Midnight Blue, with benches and screen mount

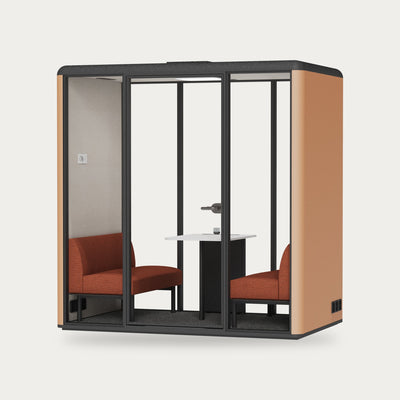

CorePod Meet acoustic pod, exterior Caramel, with benches and table

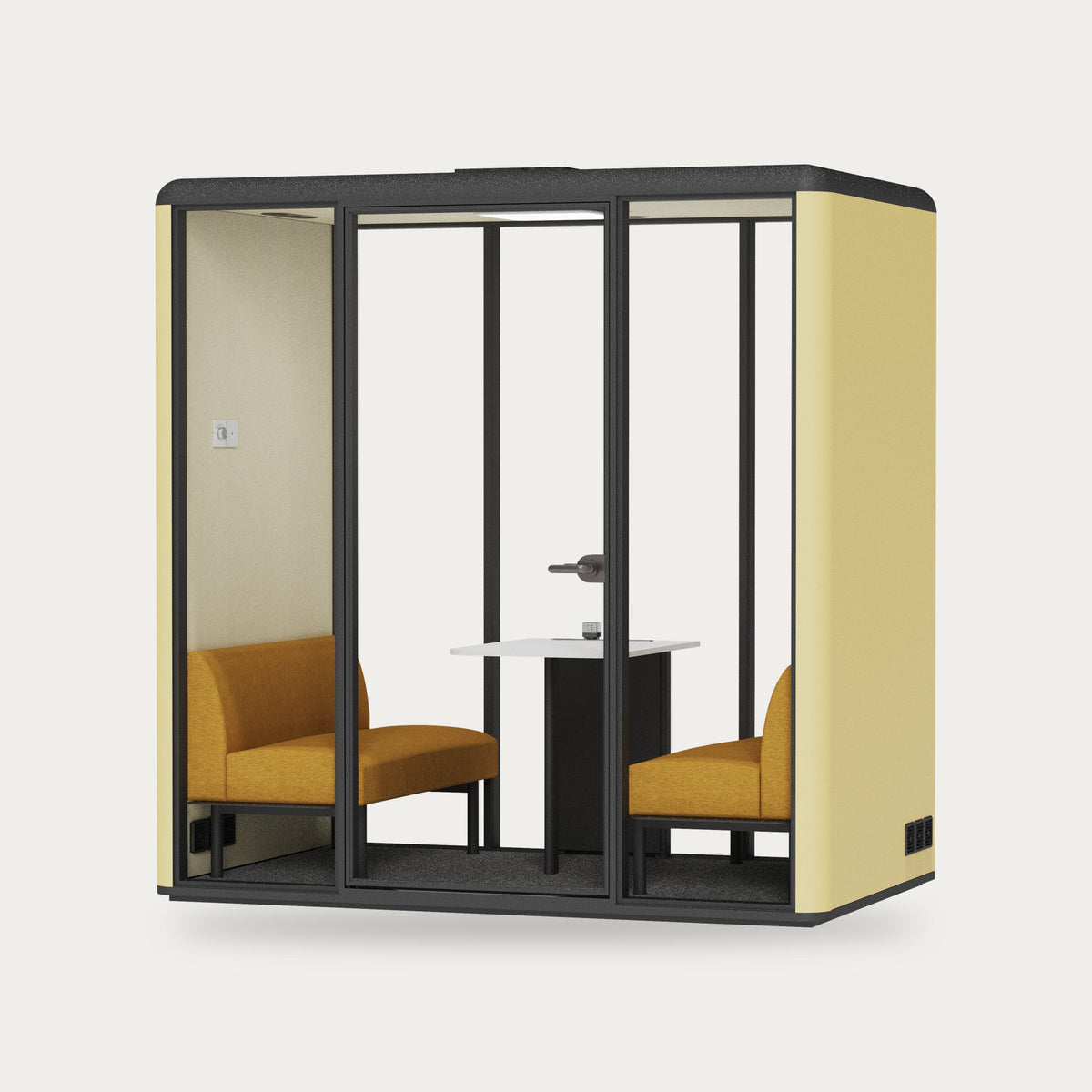

CorePod Meet acoustic pod, exterior Straw Yellow, with benches and table

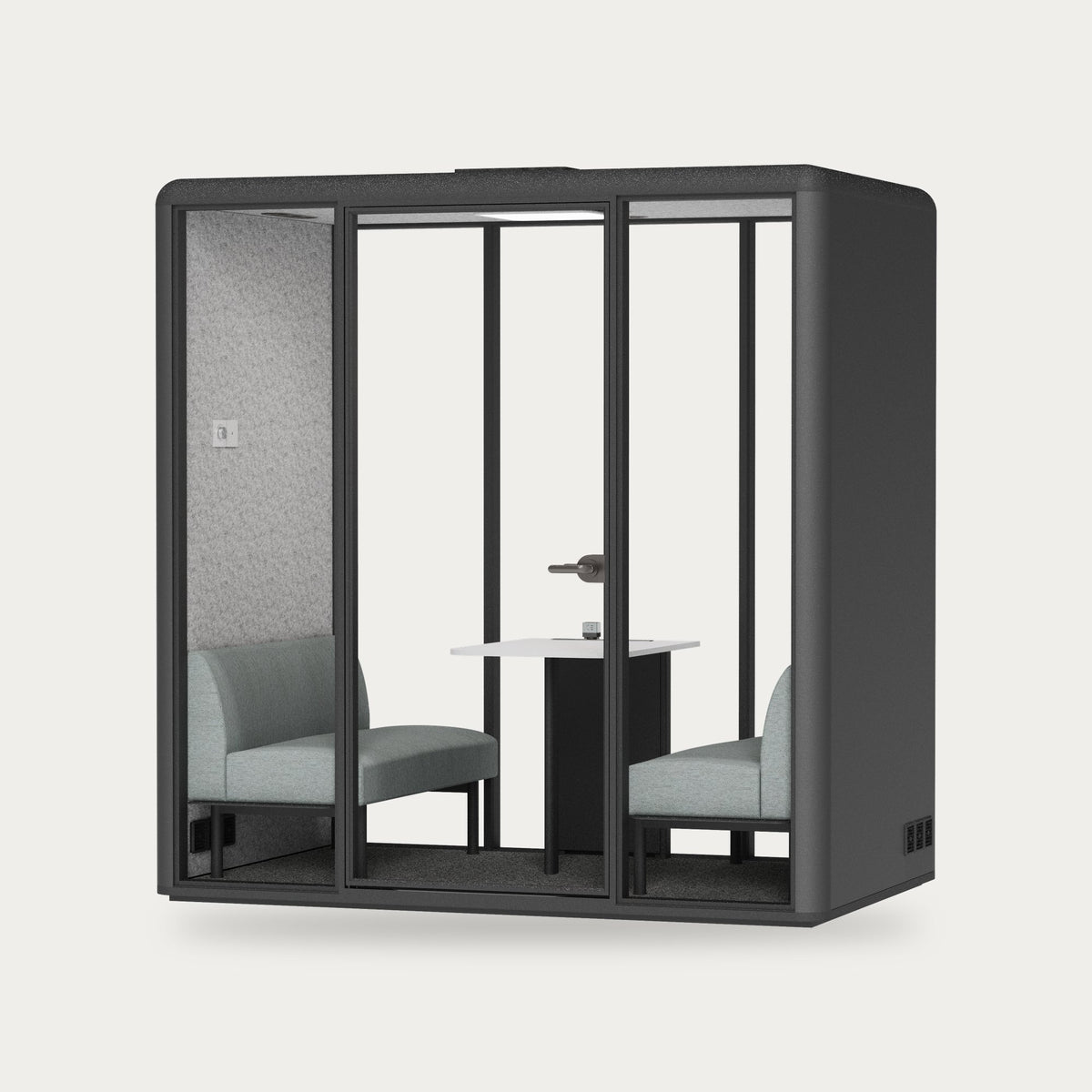

CorePod Meet acoustic pod, exterior Graphite, with benches and table

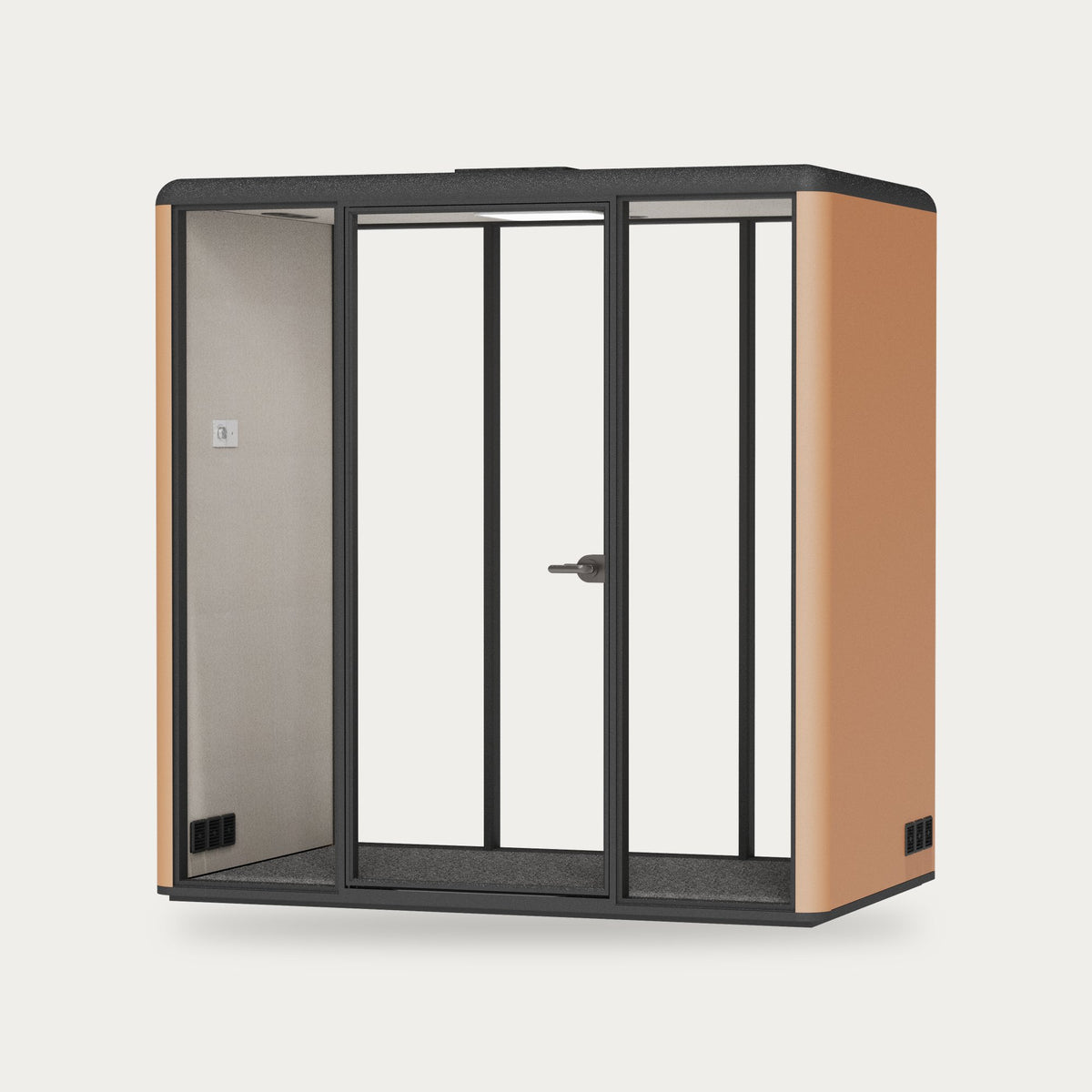

CorePod Meet acoustic pod, exterior Caramel, without furniture

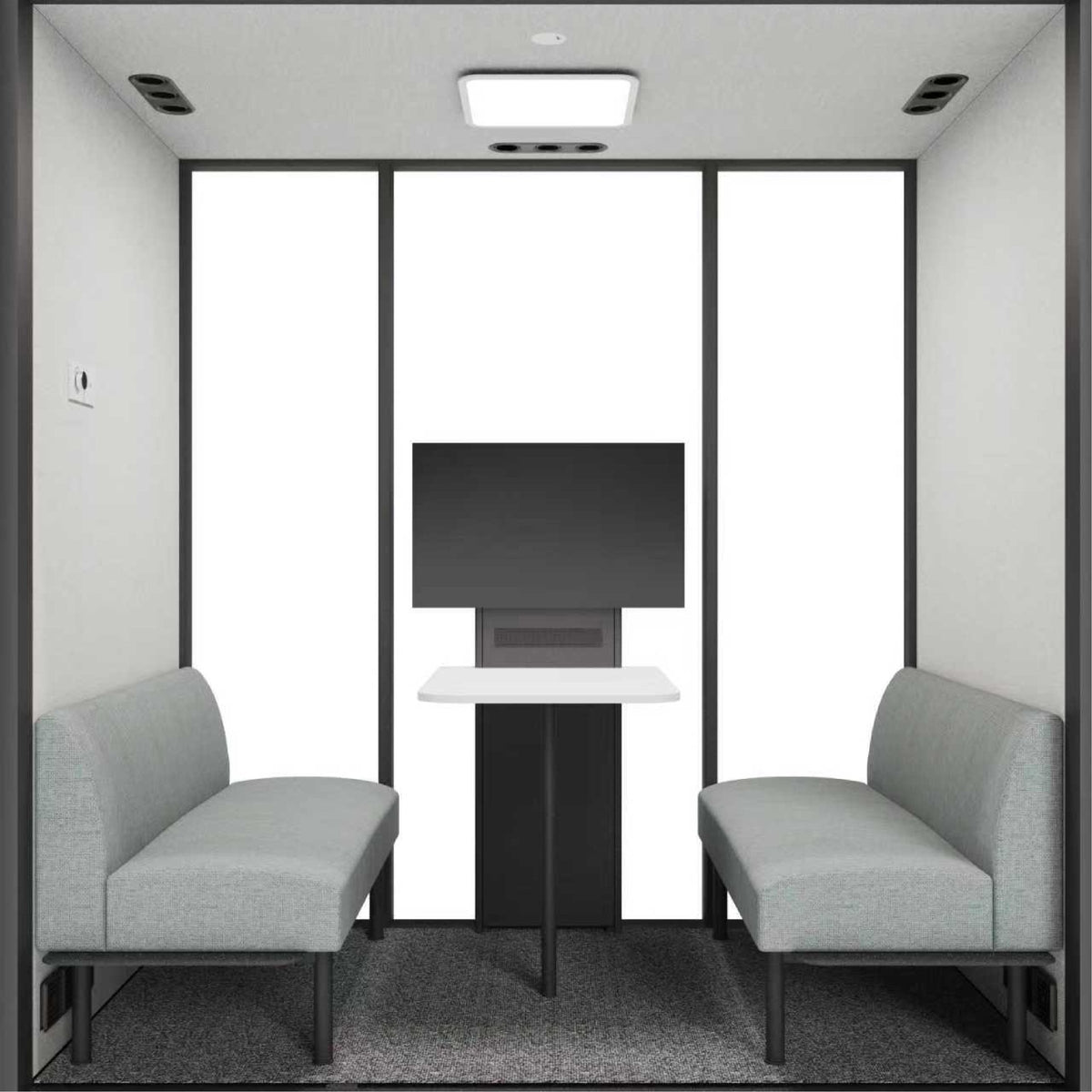

CorePod Meet, interior: benches, table and screen mount

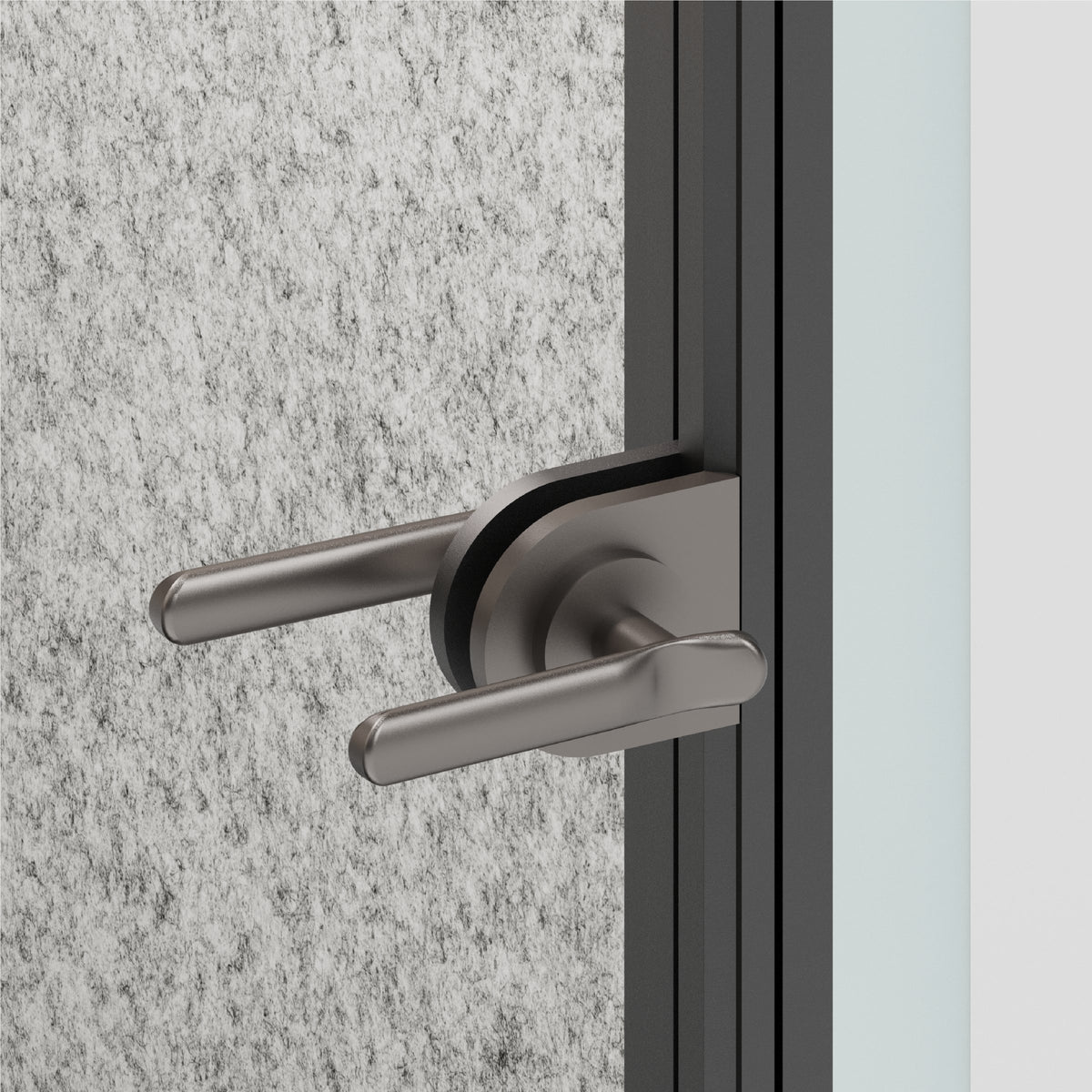

CorePod Meet, detail: door handle and acoustic felt lining

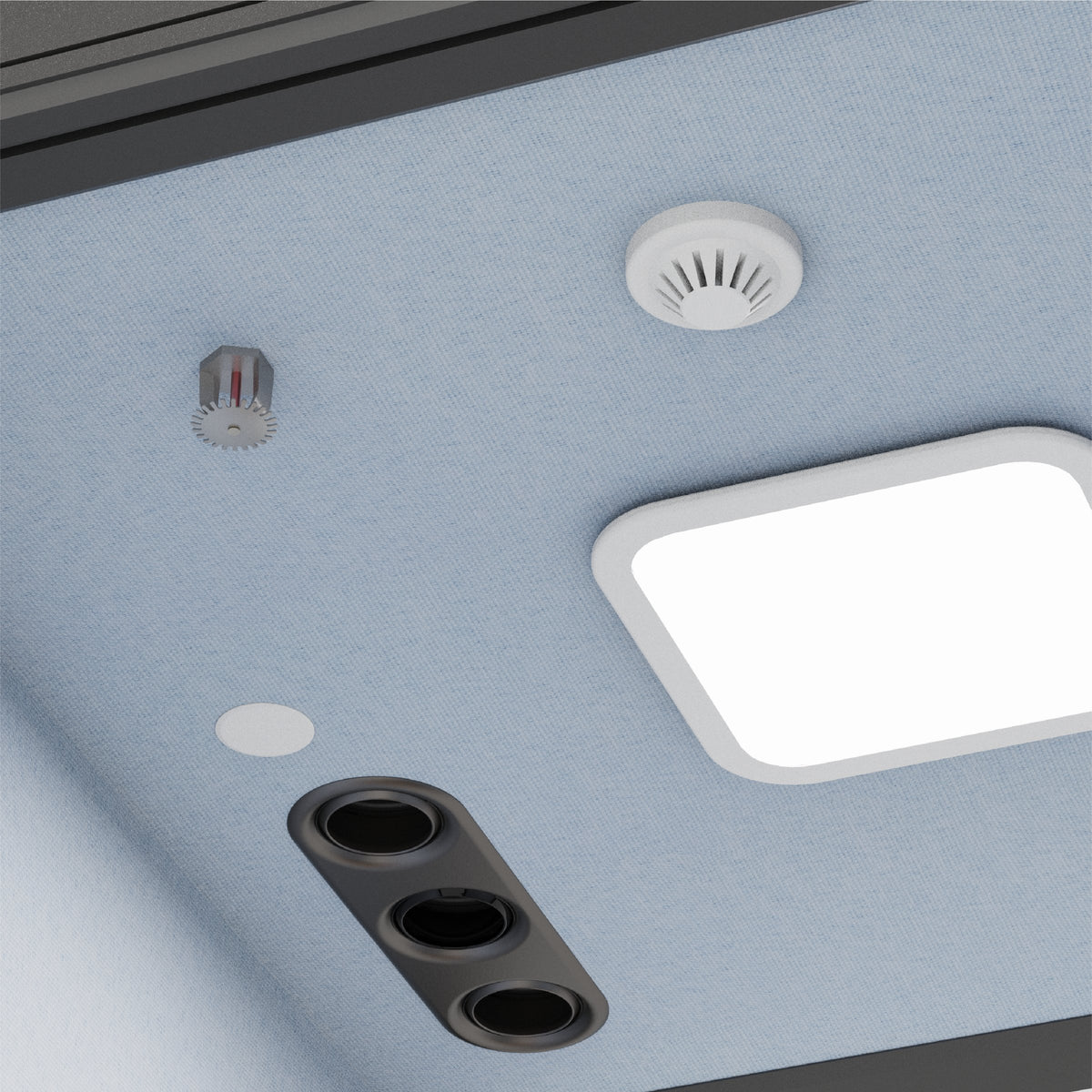

CorePod Meet, roof: LED light and ventilation

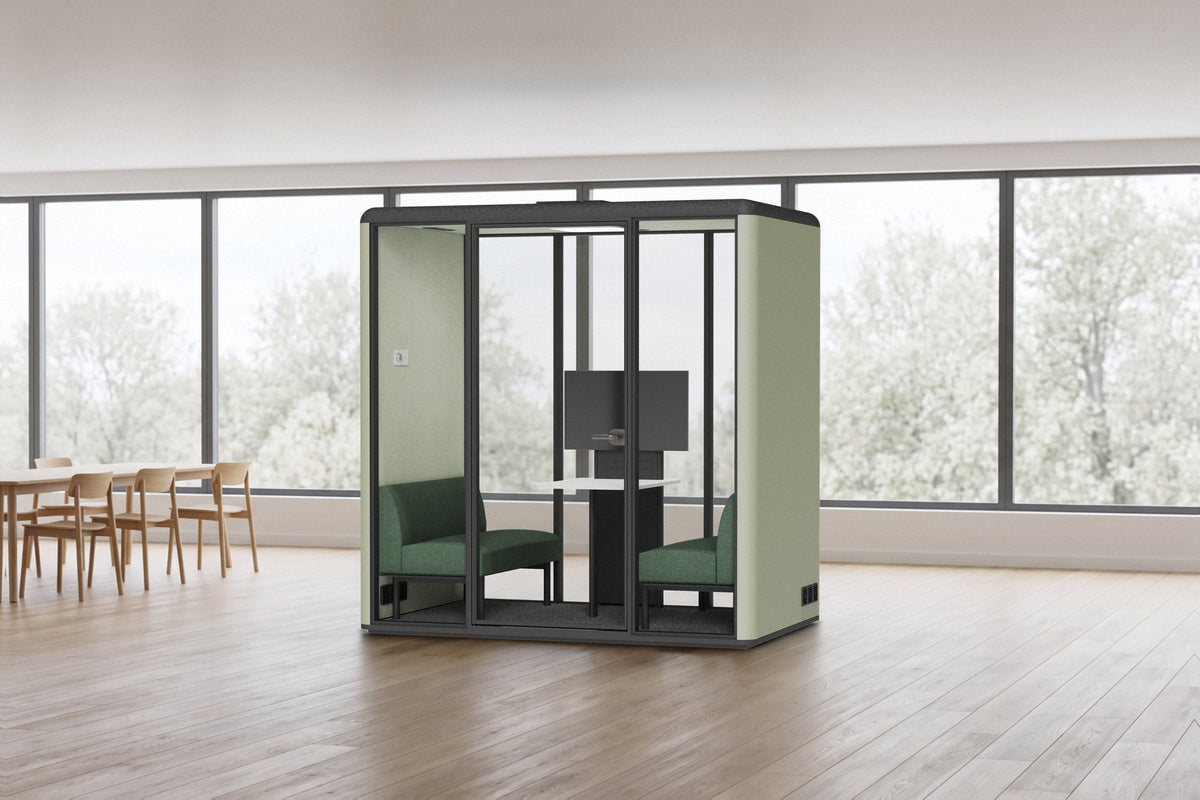

CorePod Meet acoustic pod, exterior Sage, in an office (visualisation)

Heka Interior · Acoustic pods

CorePod Meet

Meeting pod for 2 to 4 people.

External dimensions (W × D × H): 2200 × 1360 × 2280 mm
Capacity: 2–4 people
Sound insulation: DS,A 30.3 dBISO 23351-1:2020, class A
Ventilation: 480.6 m³/h8.01 m³/min

Price on request

Download technical sheet (PDF)

Delivery, installation and service: the Heka team
Advice on positioning in the space
Custom pods

Versions

With meeting table

Furniture

Meeting tableW 600 × D 900 × H 740 mm
Bench seat, 2 pcsW 1190 × D 605 × H 730; seat height 440 mm
Top: white or natural plywood

Power and data

Power track with 2 AC outlets
USB module (optional)

With table and screen mount

Furniture

Meeting table with screen mountW 600 × D 800 × H 740 + 400 mm
Bench seat, 2 pcsW 1190 × D 605 × H 730; seat height 440 mm
Top: white or natural plywood

Power and data

Integrated power module: 3 AC outlets, 1 × USB, 1 × USB-C

Technical data

Dimensions and weight

External dimensions (W × D × H)	2200 × 1360 × 2280 mm
Internal dimensions (W × D × H)	2030 × 1190 × 2130 mm
Weight	580 kg
Capacity	2–4 people

Door

Type	Hinged glass door opening outwards, with door closer
Opening direction	Left-hand door
Closing	Silent magnetic latch, ergonomic handle

Acoustics

Speech level reduction	DS,A 30.3 dB, ISO 23351-1:2020, class A
Sealing	D-profile seals made of natural rubber; silencer in the roof reduces fan and outside noise.

Ventilation and lighting

Air flow	480.6 m³/h (8.01 m³/min)
Fans	4 supply and 6 exhaust fans
Control	Adjustable ventilation with supply and exhaust fans; adjustable airflow direction.
Lighting	Ceiling LED light 4000 K, stepless dimming, motion sensor (0–20 W)

Electrics

Connection	Mains connection with a European plug
Pod power consumption	45 W
Load for connected devices	Total load of connected devices up to 1000 W
USB	5 V / 3.1 A
Network	LAN cable 3 m (optional)

Materials

Frame	Aluminium alloy 6063
Glass	Laminated safety glass 4 + 0.76 PVB + 4 mm

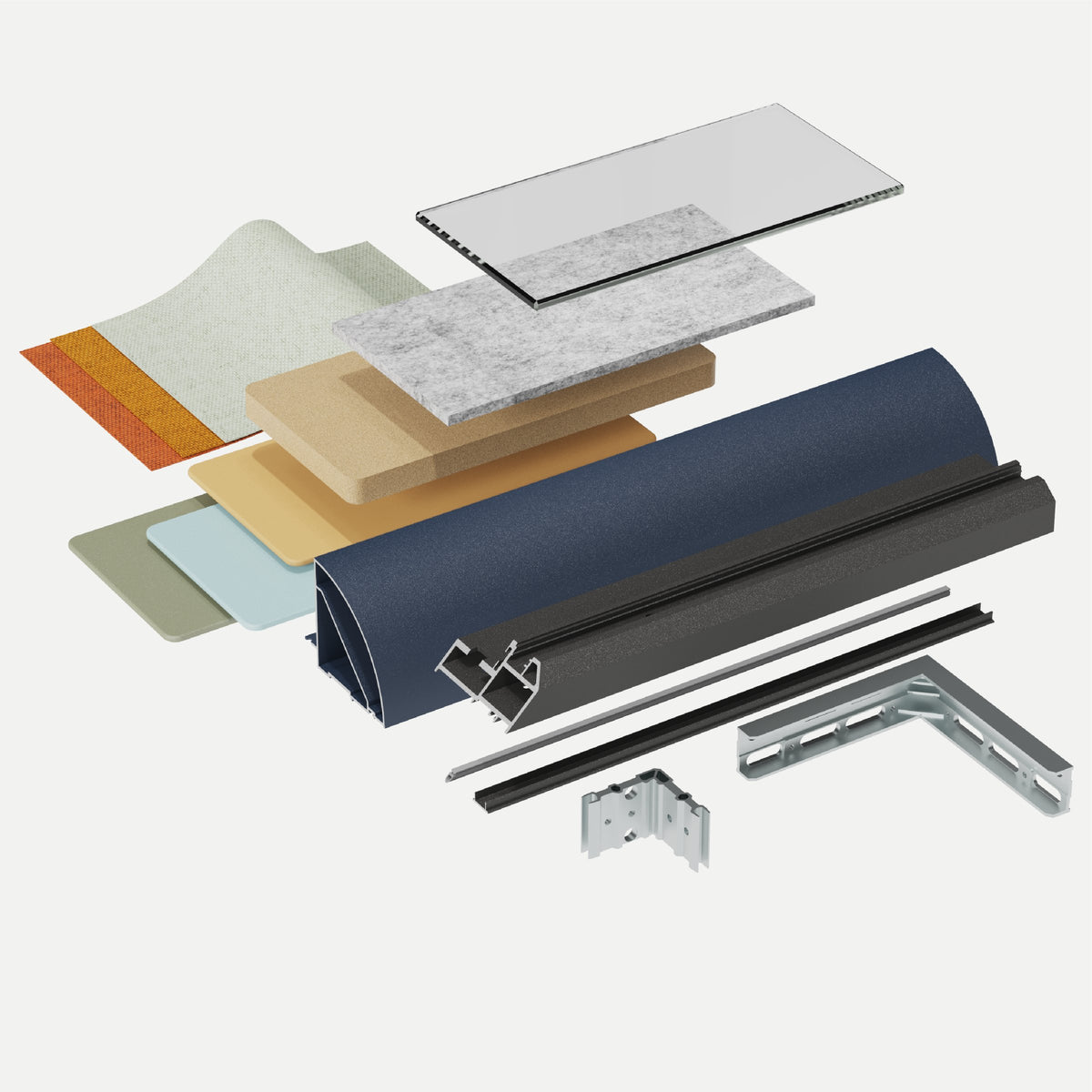

Walls	Steel cladding 1.0 mm or fabric; acoustic package: double-layer sound block 2300 g, polyester panel 3.5 mm (1800 g), felt 350 g, polyester panel 9 mm (1800 g), fabric 2 mm (400 g).
Roof	Steel 0.8 mm or fabric; acoustic package: double-layer sound block 2000 g, polyester panel 3.5 mm (1800 g), felt 350 g, polyester panel 9 mm (1800 g), fabric 2 mm (400 g).
Floor	E0 plywood 25 + 9 mm with black ABS edging, steel frame, adjustable heavy-duty feet 25 mm, nylon-yarn carpet on TPO backing.
Finish	Electrostatic powder coating
Interior	Interior lining in felt or fabric
Recycling	More than 96 % of the pod's mass consists of recyclable materials.

Installation and logistics

Installation	Modular construction from six main modules. Delivery, installation and service by the Heka team. The pod can be dismantled and relocated.
Placement	Freestanding pod on adjustable feet, no building work.
Pallet dimensions	2280 × 1440 × 920 mm, 3.1 m³ (incl. pallet)
Warranty	By agreement; the terms are stated in the quote.

Colours and materials

On-screen colours are approximate; samples are available on request.

Exterior steel cladding, powder-coated 9

Ice Blue
Chalk White
Graphite
Caramel
Sage
Straw Yellow
Midnight Blue
Powder Pink
Khaki

Fabric exterior cladding: on request

Roof, base and door frame 1

Dark Grey

Roof in another colour on request.

Interior felt lining 2

Grey Melange
Sand

Interior fabric lining 9

Light Grey
Stone Grey
Linen
Moss Green
Dove Blue
Lavender Grey
Dusty Rose
Ochre
Brick

Upholstery fabric for seating 10

Steel Grey
Greige
Mustard
Chestnut
Rust
Rosewood
Plum
Lake Blue
Navy
Spruce Green

Carpet 2

Anthracite
Stone Beige

Desk top 2

White (melamine-faced chipboard)
Natural plywood

Dimension drawing

Technical sheet (PDF, English)

Custom pods

We adapt the pod to the space, the corporate identity and the way you work.

Exterior and interior colours from the palette; fabric exterior cladding on request.
Glass with printed pattern or switchable privacy glass.
Larger meeting space built from modules: CoreRoom.
Advice on positioning in the space.
Delivery, installation and service: the Heka team.

Optional equipment

Room-booking system integration
Bluetooth conference speaker
Magnetic whiteboard, cork or pin board
Sprinkler
Fire alarm detector
Air-conditioning connection
Mechanical or smart lock
Occupancy indicator light
Castors

Questions

How is the pod installed, and can it be relocated?

Modular construction from six main modules. Delivery, installation and service by the Heka team. The pod can be dismantled and relocated. Freestanding pod on adjustable feet, no building work.

What does the pod need for the power connection?

The pod connects to the mains with a European plug. The pod uses 45 W; connected devices may draw up to 1000 W in total.

How does the ventilation work?

Supply and exhaust fans move 480.6 m³/h (8.01 m³/min) of air. Air flow and direction are adjustable; a silencer in the roof reduces fan noise.

What is the sound insulation?

Speech level reduction DS,A 30.3 dB according to ISO 23351-1:2020, class A. D-profile seals made of natural rubber; silencer in the roof reduces fan and outside noise.

Who delivers and installs the pod?

Delivery, installation and service: the Heka team. Advice on positioning in the space.

What warranty applies?

By agreement; the terms are stated in the quote.
